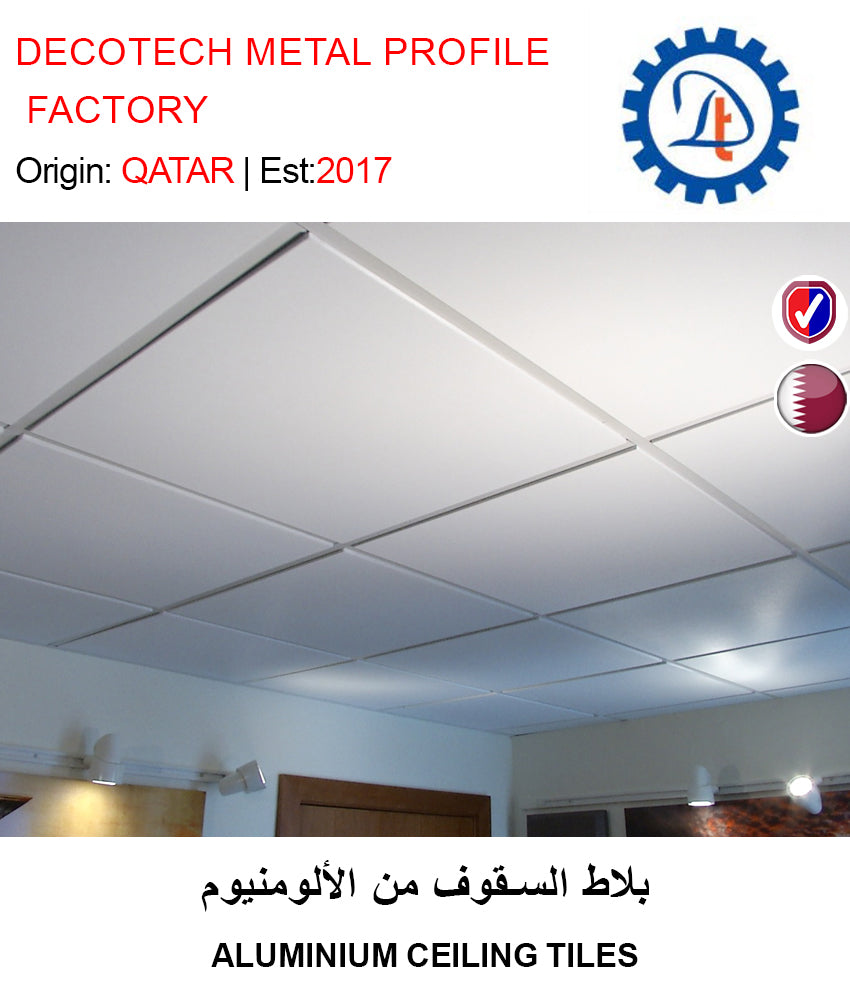

ALUMINIUM CEILING TILES
ALUMINIUM CEILING TILES
Aluminum ceiling tiles mainly consist of two different types one is Lay-in & Clip-in tile systems. Lay-in and Clip-in tiles provide easy access and are ideal for situations where regular maintenance or service is required on installations in the plenum.
Lay-in and Clip-in tiles are available in square module sizes and are having Glossy surface finish that is commonly used in ceiling design.
These tiles are manufactured from durable Aluminum with a Pre-Painted coil or GI Sheet with powder coating, these ceilings will last longer and require less maintenance.
This allows full plenum access and can be easily demounted by hand. Perforated tiles improve acoustical performance as well as create aesthetic effects.
Material
- Tiles are made from Pre-painted aluminum or Galvanised Iron (Powder coated)
- Color: RAL 9003, RAL 9010
- Thickness: 0.6 mm
Application
Decotech Tile System also offers unique systems providing the specifier unlimited design possibilities for applications ranging from banks, corporate offices, schools, airports, and commercial buildings such as shopping malls.
Benefits
- Easy access to service maintenance
- Robust and easy to clean
- High sound absorption and sound attenuation
- Extensive range of perimeter options
- Environmentally friendly and recyclable
- Durable and washable polyester powder finish
Technical Characteristics
Sound Absorption
“Sound absorption” describes the reduction of noise within a room. Perforated ceiling tiles with an acoustic fleece overlay absorb sound energy and serve to control acoustic reverberation time. Different combinations of perforated open areas and acoustic pad density/thickness provide different levels of sound absorption.
Acoustical Performance Details
Decotech ceiling tile with black non-woven acoustic fleece attains Class-C sound absorption with NRC 0.7 to 0.75. Higher acoustic performance can be attained by using acoustic pads.

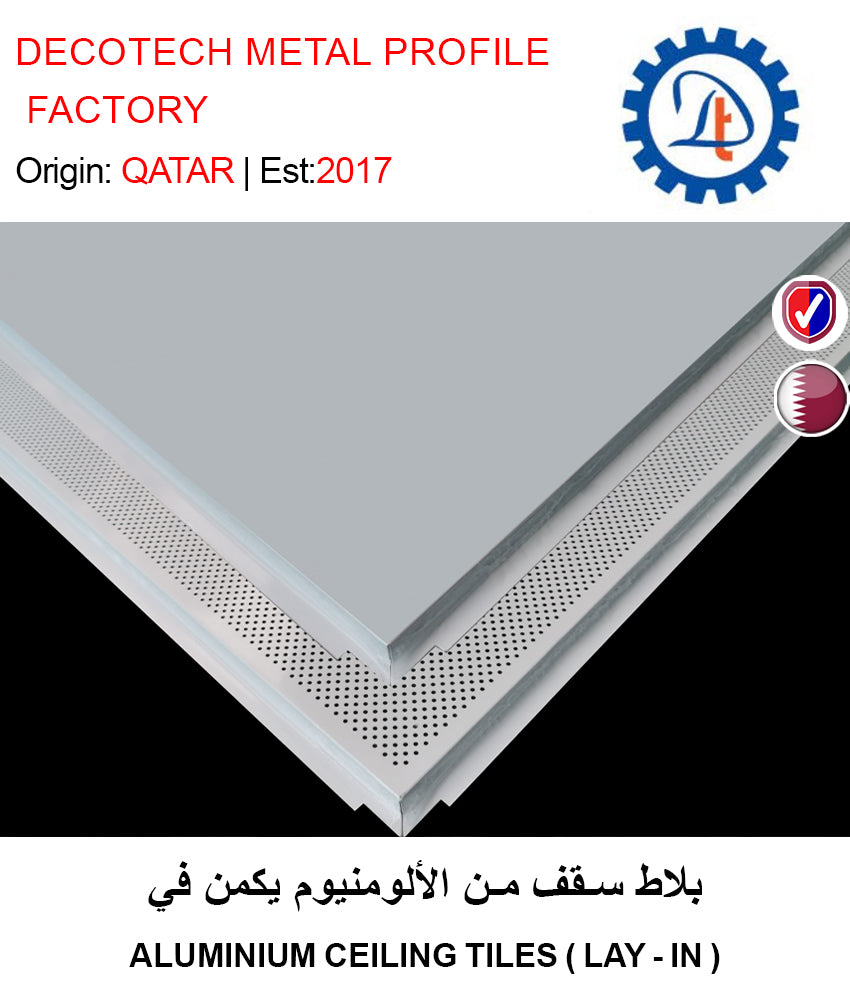

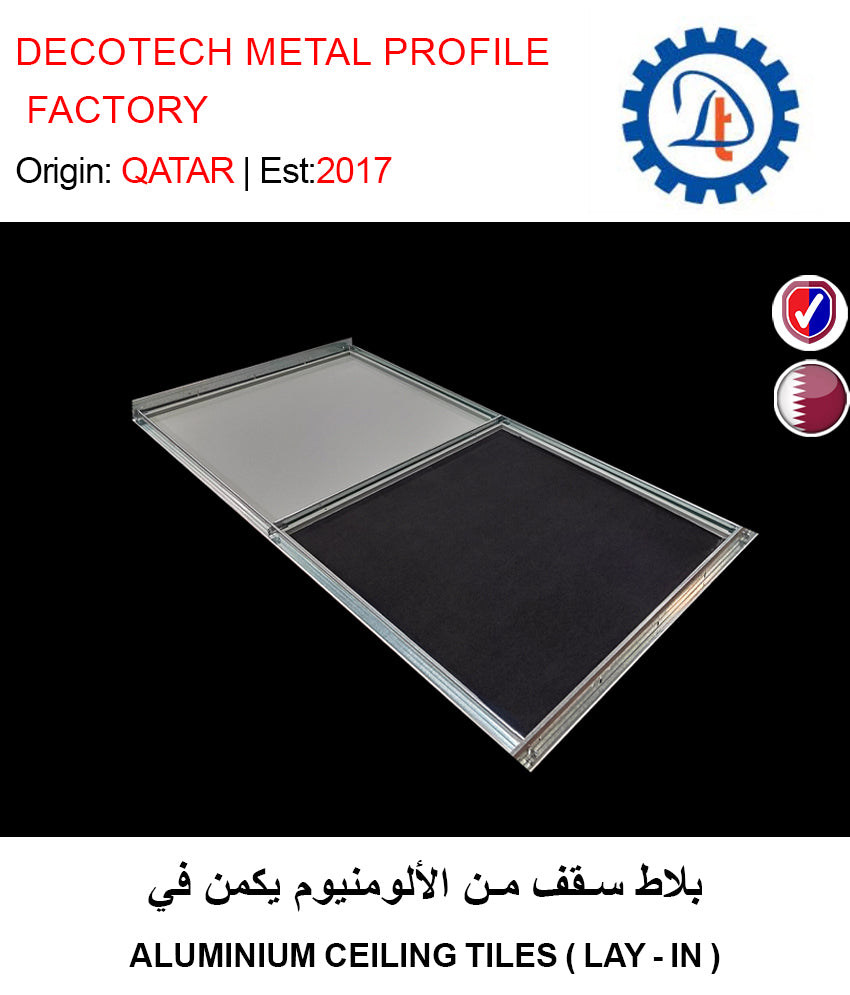

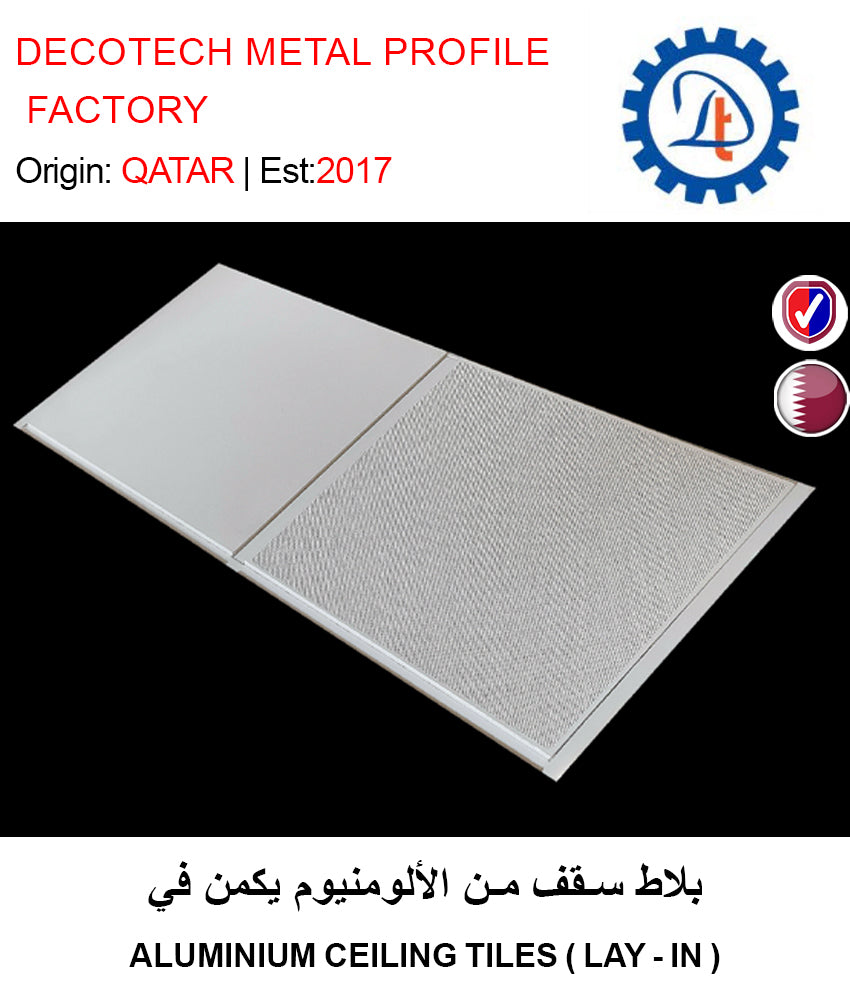

Lay-In tile system
The Lay-In Ceiling Tile system is very versatile and durable. The lay-in tile allows installation, removal, and maintenance without any damage to the system.
Decotech provides two compatible sizes in both plain and perforated options.
Installation Method: The Decotech lay-in system grid is composed primarily of Cross Tee and Main Tee intersecting at various points. Each set of parallel 1200mm has a 600mm Cross Tee connected to the mid-points of both. (Refer to Cross Tee and Main Tee for measurements).

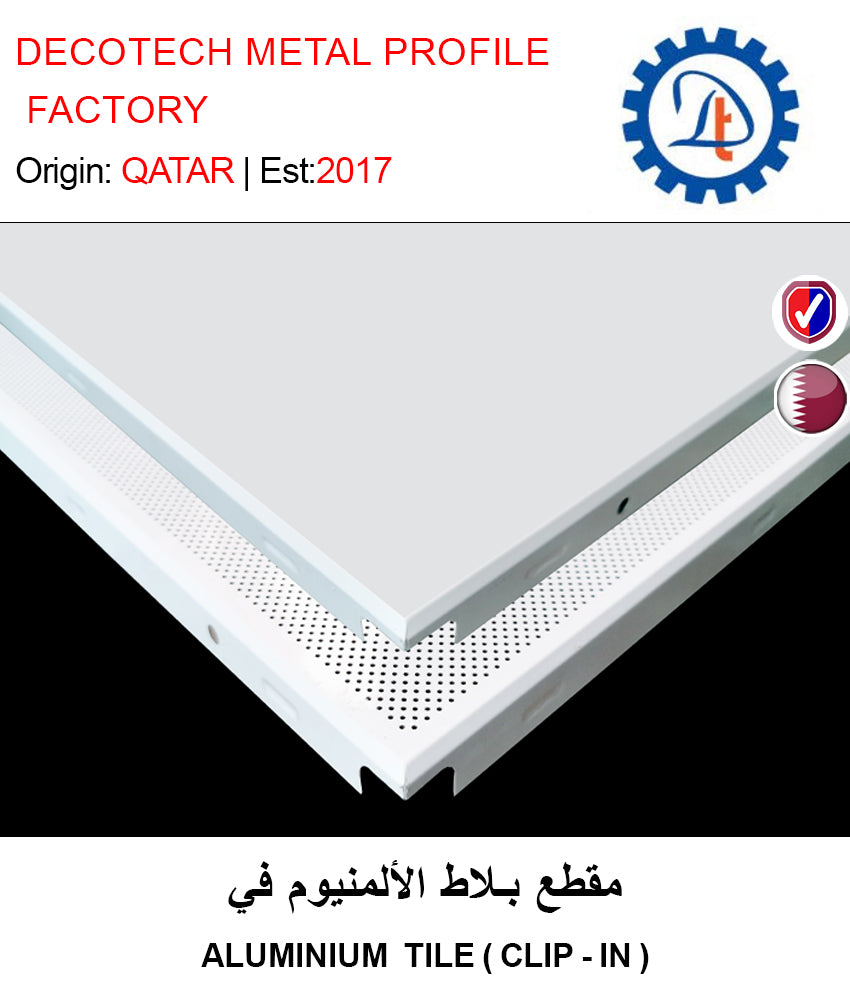

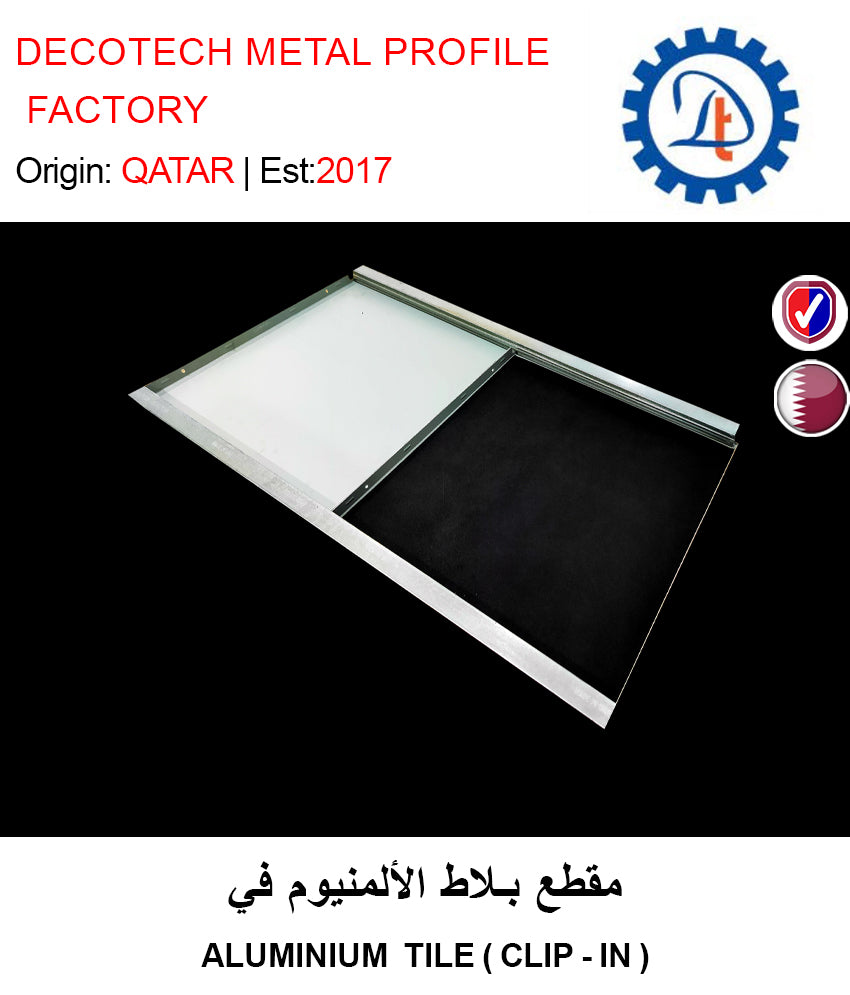

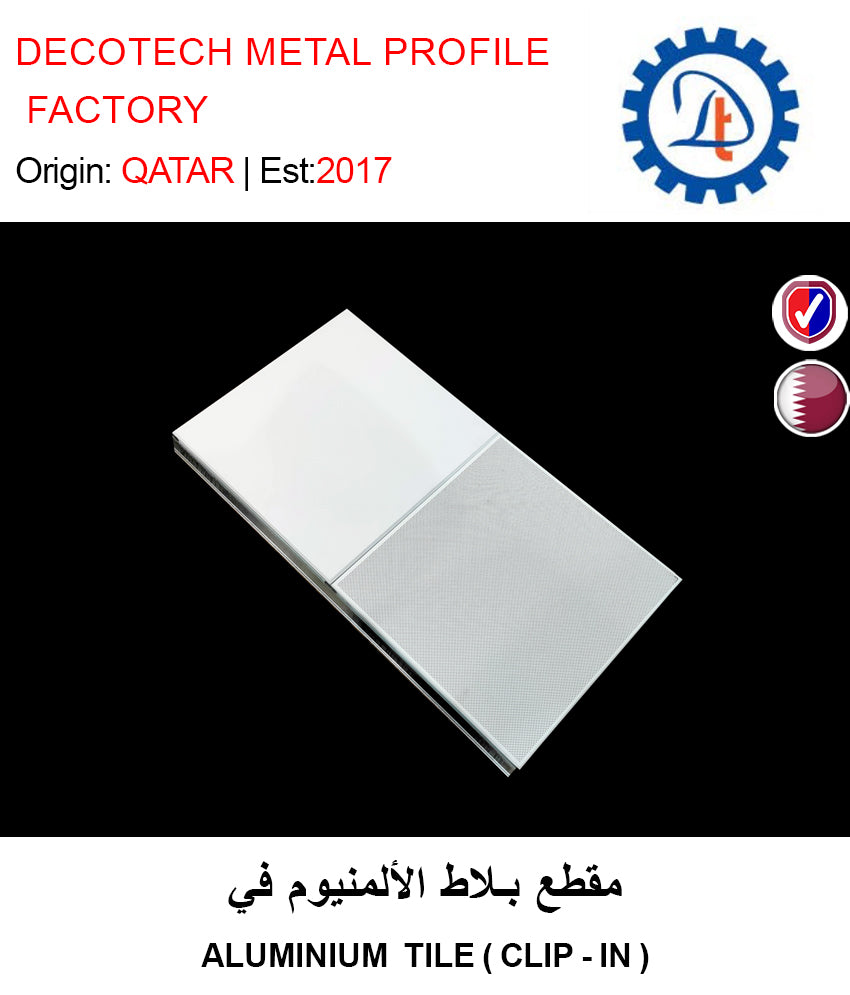

Clip-In tile system
Clip-in ceiling tile is a modern method that allows very durable and stable installation. The grid is not visible in this system and it is fixed to and below a primary grid.
Decotech provides both plain and perforated options.
Clip-In Grid Components:
|
Tools |
Functions |
|
Main Channel |
Provides primary support and lateral restraint |
|
Spring Tee |
Provides support for tile flanges, Suspend below suspension channel |
|
U-Channel |
Used to create a perfect professional finished edge on the new ceiling |
|
Spring Tee Joint |
Used to connect one end of the Spring tee to another one, It is a connecting tool |

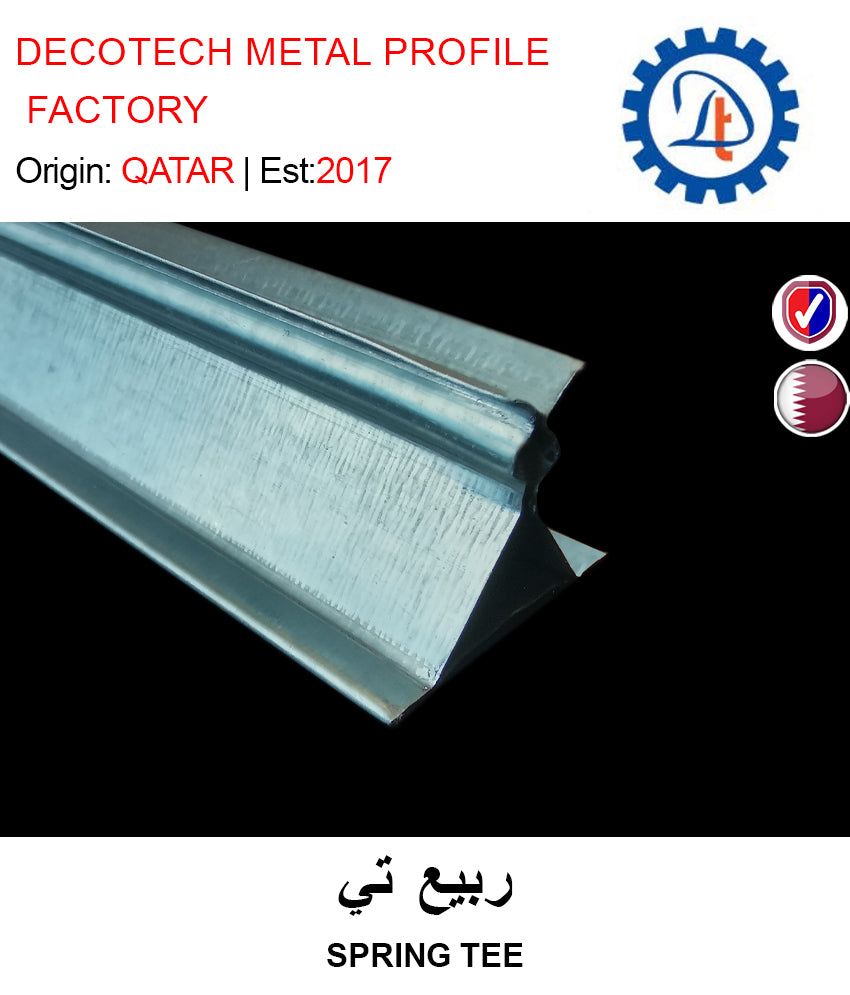

Spring Tee
The Spring Tee System is designed for use with metal pan clip-in tiles. The clip-in tile corner is inserted directly into the midst of the sprint tee.

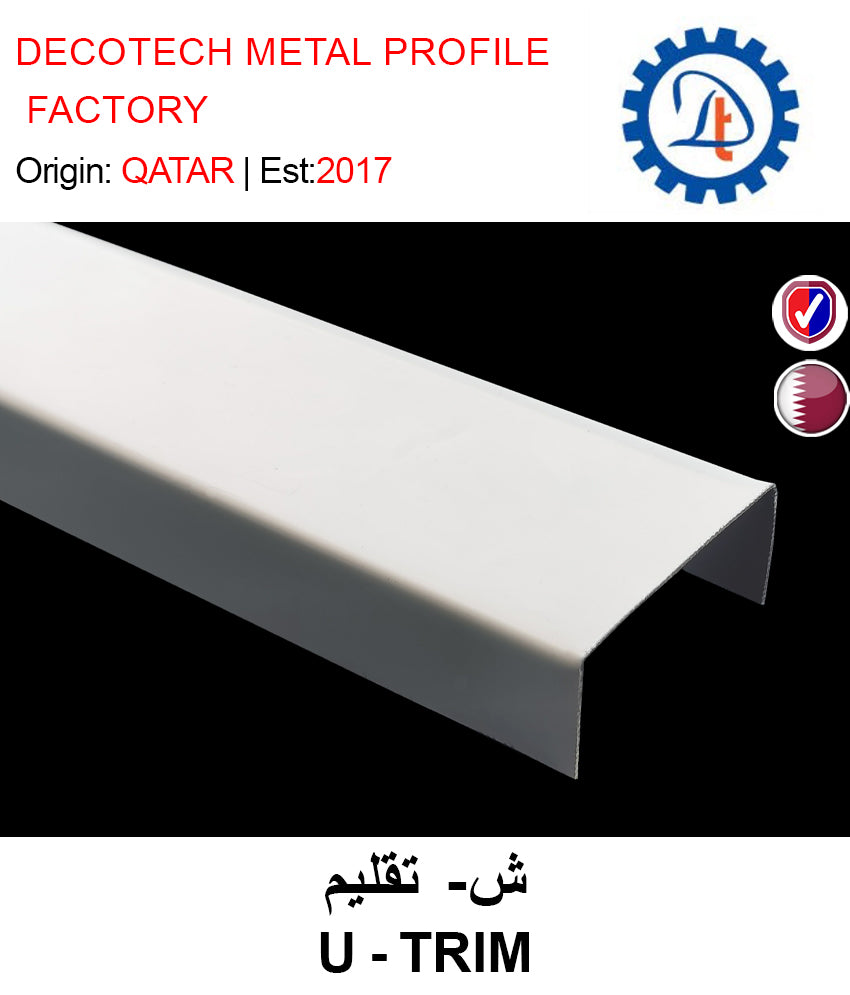

U-Channel
Ceiling Panel U-Trim is pre-painted in white and it is used to create the perfect professional finished edge on the new ceiling. This clever U-trim neatly slots around the entire ceiling to create a stunning flawless look.

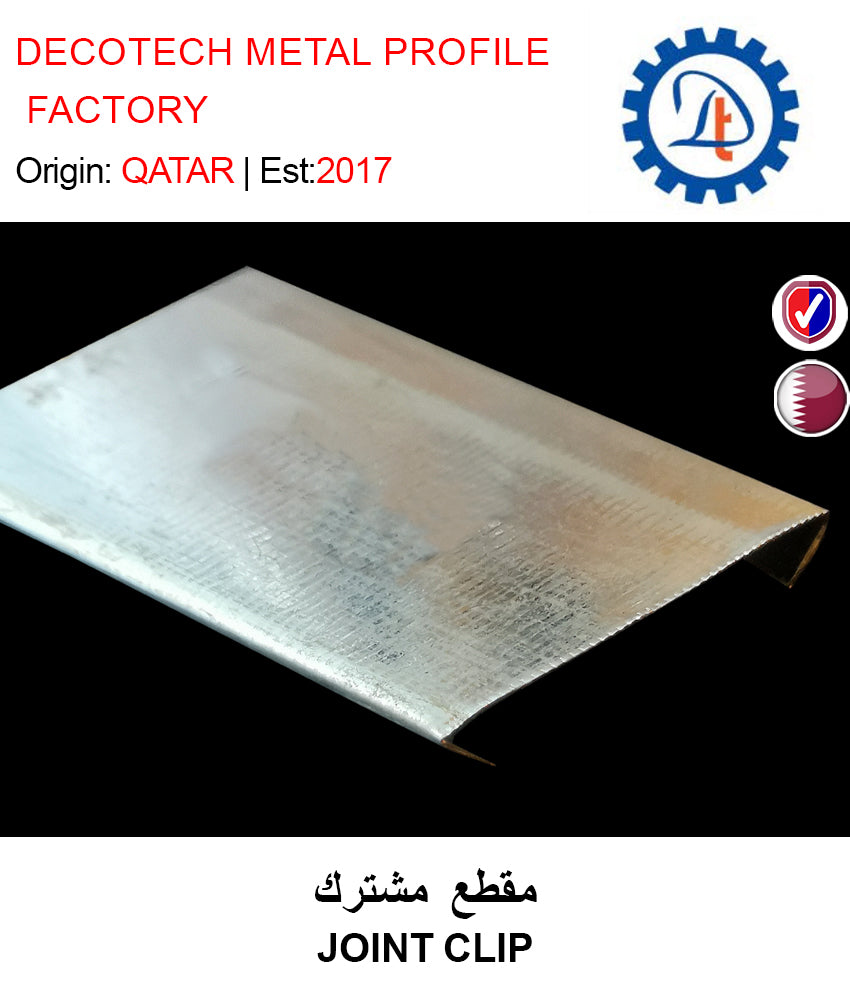

Joint Clip
Joint clips are used for the expansion of the spring tee in the clip-in ceiling system.
